DELL · Servers

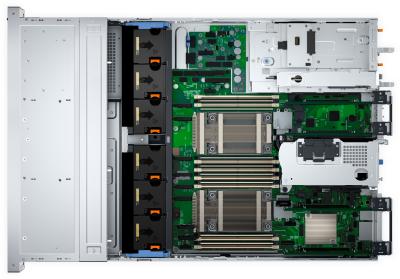

DELL PowerEdge R760XS server 480 GB Rack (2U) Intel® Xeon® Gold 6526Y 2.8 GHz 32 GB DDR5-SDRAM 600 W
- Code
- R760XSFY26Q2V1
- Processor manufacturer: Intel
- Processor family: Intel® Xeon® Gold
- Internal memory: 32 GB
- Internal memory type: DDR5-SDRAM
- Total storage capacity: 480 GB
Pricing on request for federal, state, and local agencies.
No overview published for this product.
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel® Xeon® Gold
- Processor model
- 6526Y
- Processor frequency
- 2.8 GHz
- Processor boost frequency
- 3.9 GHz
- Processor cores
- 16
- Processor cache
- 37.5 MB
- Motherboard chipset
- Intel C741
- Number of processors installed
- 1
- Thermal Design Power (TDP)
- 195 W
- Maximum internal memory supported by processor
- 512 GB
Memory
- Internal memory
- 32 GB
- Internal memory type
- DDR5-SDRAM
- Buffered memory type
- Registered (buffered)
- Memory ranking
- 2
- Memory slots
- 16x DIMM
- Memory clock speed
- 5200 MHz
- Memory data transfer rate
- 5600 MT/s
- Maximum internal memory
- 1 TB
Storage
- Total storage capacity
- 480 GB
- Number of SSDs installed
- 1
- SSD capacity
- 480 GB
- SSD interface
- SATA III
- SSD size
- 2.5"
- Supported SSD sizes
- 3.5"
- RAID support
- Yes
- Supported RAID controllers
- PERC H755
- Hot-Plug support
- Yes
- Optical drive type
- No
- Internal drive bays
- 12
- Supported storage drive interfaces
- SAS, Serial ATA
- Drive writes per day (DWPD)
- 1
Network
- LAN controller
- Broadcom 5720
- Ethernet LAN
- Yes
- Cabling technology
- 10/100/1000Base-T(X)
- Ethernet interface type
- Gigabit Ethernet
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 2
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- VGA (D-Sub) ports quantity
- 2
- Power cables quantity
- 2
Design
- Chassis type
- Rack (2U)
- Product colour
- Black
- Rack rails
- Yes
- Bezel
- Yes
Performance
- Remote administration
- ,iDRAC9, Data center 16G
Software
- Operating system installed
- No
- Compatible operating systems
- Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSAN/ESXi
Power
- Redundant power supply (RPS) support
- Yes
- Power supply
- 600 W
- Number of redundant power supplies supported
- 2
- Number of redundant power supplies installed
- 2
- Power cable length
- 3 m
- Power cable connector 1
- C13 coupler
- Power cable current
- 15 A
Operational conditions
- Storage temperature (T-T)
- -40 - 65 °C
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 12000 m
Carbon footprint
- Total carbon footprint (kg of CO2e)
- 6654
- Total carbon emissions, standard deviation (kg of CO2e)
- 3747
- Carbon emissions, manufacturing (kg of CO2e)
- 465.78
- Carbon emissions, logistics (kg of CO2e)
- 133.08
- Carbon emissions, energy usage (kg of CO2e)
- 6055.14
- PAIA version
- 1.3.2, 2022
Weight & dimensions
- Width
- 482 mm
- Height
- 86.8 mm
- Weight
- 28.6 kg
Packaging content
- Packaging content
- Riser Config 2, Butterfly Gen4 Riser (x8/x8)
Other features
- Data transfer rate
- 6 Gbit/s
- Bytes per sector
- 512
