DELL · Servers

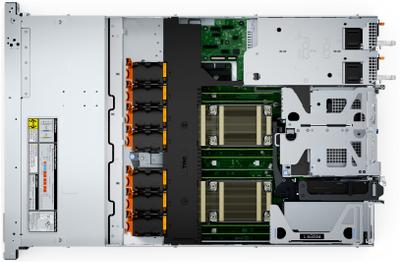

DELL PowerEdge R660XS server 960 GB Rack (1U) Intel Xeon Silver 4514Y 2 GHz 64 GB DDR5-SDRAM 1100 W
- Code
- EMEA_PROMO_R660XS_SPL2
- Processor manufacturer: Intel
- Processor family: Intel Xeon Silver
- Internal memory: 64 GB
- Internal memory type: DDR5-SDRAM
- Total storage capacity: 960 GB
Pricing on request for federal, state, and local agencies.
No overview published for this product.
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel Xeon Silver
- Processor model
- 4514Y
- Processor frequency
- 2 GHz
- Processor boost frequency
- 3.4 GHz
- Processor cores
- 16
- Processor cache
- 30 MB
- Motherboard chipset
- Intel C741
- Number of processors installed
- 1
- Thermal Design Power (TDP)
- 150 W
- System bus rate
- 16 GT/s
- Processor threads
- 32
- Memory types supported by processor
- DDR5-SDRAM
- Memory clock speeds supported by processor
- 4400 MHz
Memory
- Internal memory
- 64 GB
- Internal memory type
- DDR5-SDRAM
- Memory slots
- 16x DIMM
- Memory layout (slots x size)
- 2 x 32 GB
- Maximum internal memory
- 1 TB
Storage
- Total storage capacity
- 960 GB
- Number of SSDs installed
- 1
- SSD capacity
- 960 GB
- SSD interface
- SATA III
- SSD size
- 2.5"
- Supported SSD sizes
- 2.5"
- Number of SSDs supported
- 8
- RAID support
- Yes
- Supported RAID controllers
- Front PERC H755 Front Load
- Hot-Plug support
- Yes
- Optical drive type
- No
- Drive writes per day (DWPD)
- 1
Network
- Ethernet LAN
- Yes
- Cabling technology
- 10/100/1000Base-T(X)
- Ethernet interface type
- Gigabit Ethernet
Ports & interfaces
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- VGA (D-Sub) ports quantity
- 2
Expansion slots
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x8 (Gen 5.x) slots
- 1
Design
- Chassis type
- Rack (1U)
- Product colour
- Black
- Rack rails
- Yes
Performance
- Trusted Platform Module (TPM)
- Yes
- Trusted Platform Module (TPM) version
- 2.0
Software
- Operating system installed
- No
- Compatible operating systems
- Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSAN/ESXi
Power
- Redundant power supply (RPS) support
- Yes
- Power supply
- 1100 W
- Number of redundant power supplies installed
- 2
- Power supply input voltage
- 100 - 240 V
Operational conditions
- Operating temperature (T-T)
- 10 - 35 °C
- Storage temperature (T-T)
- -40 - 65 °C
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 12000 m
Certificates
- 80 PLUS certification
- 80 PLUS Titanium
Carbon footprint
- Total carbon footprint (kg of CO2e)
- 6561
- Total carbon emissions, standard deviation (kg of CO2e)
- 3677
- Carbon emissions, manufacturing (kg of CO2e)
- 459.27
- Carbon emissions, logistics (kg of CO2e)
- 131.22
- Carbon emissions, energy usage (kg of CO2e)
- 5970.51
- PAIA version
- PAIA 1.3.2, 2022
Weight & dimensions
- Width
- 434 mm
- Height
- 42.8 mm
Packaging content
- Packaging content
- Riser Config 5
Other features
- Data transfer rate
- 6 Gbit/s
- Bytes per sector
- 512e
- Target workload
- Read Intensive (RI)
