DELL · Servers

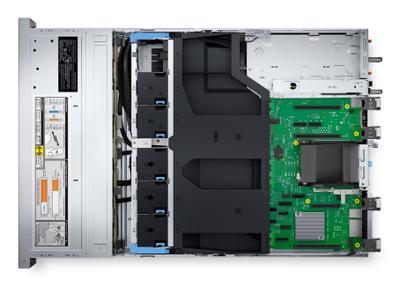

DELL PowerEdge R550 server 2 TB Rack (2U) Intel Xeon Silver 4310 2.1 GHz 32 GB DDR4-SDRAM 800 W
- Code
- XT5T8
- GTIN
- 0884116409199
- Processor manufacturer: Intel
- Processor family: Intel Xeon Silver
- Internal memory: 32 GB
- Internal memory type: DDR4-SDRAM
- Total storage capacity: 2 TB
Pricing on request for federal, state, and local agencies.
2U value-optimized server for added versatility
The Dell PowerEdge R550, with 3rd generation Intel® Xeon® Scalable processors, offers added flexibility for organizations seeking exceptional value.
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel Xeon Silver
- Processor generation
- 3rd Generation Intel® Xeon® Scalable
- Processor model
- 4310
- Processor frequency
- 2.1 GHz
- Processor boost frequency
- 3.3 GHz
- Processor cores
- 12
- Processor cache
- 18 MB
- Number of processors installed
- 1
- Thermal Design Power (TDP)
- 120 W
- Memory types supported by processor
- DDR4-SDRAM
- Memory clock speeds supported by processor
- 2666 MHz
Memory
- Internal memory
- 32 GB
- Internal memory type
- DDR4-SDRAM
- Buffered memory type
- Registered (buffered)
- Memory ranking
- 2
- Memory slots
- 16x DIMM
- Memory clock speed
- 3200 MHz
- Memory layout (slots x size)
- 2 x 16 GB
- Memory data transfer rate
- 3200 MT/s
- Maximum internal memory
- 1 TB
Storage
- Total storage capacity
- 2 TB
- Number of HDDs installed
- 1
- HDD capacity
- 2 TB
- HDD interface
- SATA III
- HDD speed
- 7200 RPM
- HDD size
- 3.5"
- Number of HDDs supported
- 8
- Supported HDD sizes
- 3.5"
- RAID support
- Yes
- Supported RAID controllers
- PERC H755
- Hot-Plug support
- Yes
- Optical drive type
- No
Graphics
- On-board graphics card model
- Not available
Network
- LAN controller
- Broadcom 5720
- Ethernet LAN
- Yes
- Cabling technology
- 10/100/1000Base-T(X)
- Ethernet interface type
- 10 Gigabit Ethernet
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 2
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- VGA (D-Sub) ports quantity
- 2
- Power cables quantity
- 2
Expansion slots
- PCI Express x8 slots
- 1
- PCI Express x16 slots
- 1
Design
- Chassis type
- Rack (2U)
- Product colour
- Black
Performance
- Remote administration
- iDRAC9, Enterprise 15G
- Trusted Platform Module (TPM)
- Yes
- Trusted Platform Module (TPM) version
- 2.0
Software
- Operating system installed
- No
- Compatible operating systems
- Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Power
- Redundant power supply (RPS) support
- Yes
- Power supply
- 800 W
- Number of redundant power supplies supported
- 2
- Number of redundant power supplies installed
- 2
- Power cable length
- 3 m
- Power cable connector 1
- NEMA 5-15P
- Power cable connector 2
- C13 coupler
- Power cable current
- 15 A
Operational conditions
- Operating temperature (T-T)
- 10 - 35 °C
- Storage temperature (T-T)
- -40 - 65 °C
- Operating relative humidity (H-H)
- 8 - 80%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 12000 m
Carbon footprint
- Total carbon footprint (kg of CO2e)
- 8790
- Total carbon emissions, standard deviation (kg of CO2e)
- 4760
- Carbon emissions, manufacturing (kg of CO2e)
- 1054.8
- Carbon emissions, logistics (kg of CO2e)
- 175.8
- Carbon emissions, energy usage (kg of CO2e)
- 7559.4
- PAIA version
- PAIA 1.3.2, 2022
Packaging content
- Packaging content
- 2X NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m)
Other features
- Data transfer rate
- 6 Gbit/s
- Bytes per sector
- 512n
