DELL · Servers

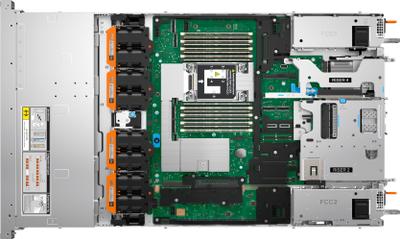

DELL PowerEdge R470 server 480 GB Rack (1U) Intel Xeon 6 6505P 2.2 GHz 32 GB DDR5-SDRAM 800 W
- Code
- R470264_6505P480
- Processor manufacturer: Intel
- Processor family: Intel Xeon 6
- Internal memory: 32 GB
- Internal memory type: DDR5-SDRAM
- Total storage capacity: 480 GB
Pricing on request for federal, state, and local agencies.
No overview published for this product.
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel Xeon 6
- Processor model
- 6505P
- Processor frequency
- 2.2 GHz
- Processor boost frequency
- 4.1 GHz
- Processor cores
- 12
- Processor cache
- 48 MB
- Number of processors installed
- 1
- Thermal Design Power (TDP)
- 150 W
- System bus rate
- 24 GT/s
- Processor threads
- 24
- Memory types supported by processor
- DDR5-SDRAM
- Memory clock speeds supported by processor
- 6400 MHz
Memory
- Internal memory
- 32 GB
- Internal memory type
- DDR5-SDRAM
- Buffered memory type
- Registered (buffered)
- Memory ranking
- 2
- Memory slots
- 16x DIMM
Storage
- Total storage capacity
- 480 GB
- Number of SSDs installed
- 1
- SSD capacity
- 480 GB
- SSD interface
- SATA III
- SSD size
- 2.5"
- Supported SSD sizes
- 2.5"
- Number of SSDs supported
- 6
- Supported RAID controllers
- PERC H965i
- Hot-Plug support
- Yes
- Optical drive type
- No
- Drive writes per day (DWPD)
- 3
Network
- Networking features
- BASE-T Adapter
- LAN controller
- Broadcom 57504, Intel E610-XAT4
- Ethernet LAN
- Yes
- Ethernet interface type
- 10 Gigabit Ethernet, 25 Gigabit Ethernet
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- VGA (D-Sub) ports quantity
- 1
- Fiber ports quantity
- 4
- Fiber optic connector
- SFP28
Expansion slots
- PCI Express x16 (Gen 5.x) slots
- 2
Design
- Chassis type
- Rack (1U)
- Product colour
- Grey
Performance
- Remote administration
- iDRAC10, Enterprise 17G
Software
- Operating system installed
- No
- Compatible operating systems
- Canonical Ubuntu Server LTS RedHat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi Windows Server Windows Server Datacenter
Power
- Redundant power supply (RPS) support
- Yes
- Power supply
- 800 W
- Number of redundant power supplies installed
- 2
- Power supply input voltage
- 100 - 240 V
Certificates
- 80 PLUS certification
- 80 PLUS Titanium
Carbon footprint
- Total carbon footprint (kg of CO2e)
- 2549
- Total carbon emissions, standard deviation (kg of CO2e)
- 1827
- Carbon emissions, manufacturing (kg of CO2e)
- 553.133
- Carbon emissions, logistics (kg of CO2e)
- 170.783
- Carbon emissions, energy usage (kg of CO2e)
- 1799.594
- Carbon emissions, end-of-life (kg of CO2e)
- 22.941
- PAIA version
- PAIA 1.4.2, 2025
Weight & dimensions
- Width
- 482 mm
- Height
- 42.8 mm
Packaging content
- Packaging content
- Power Cord - C13, 3M, 125V, 15A Riser Config 6
Other features
- I/O ports
- Rear IO
- Data transfer rate
- 6 Gbit/s
- Bytes per sector
- 512e
- Target workload
- Read Intensive (RI)
- Open Compute Project (OCP)
- 3.0 NIC, Onboard
