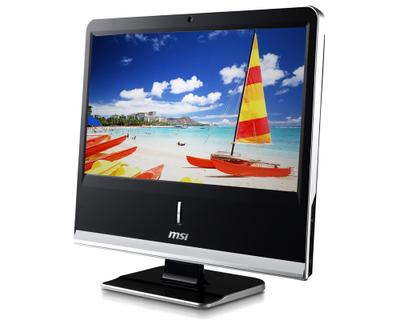

MSI Wind Top Professional AP1920-5223W7H Intel Atom® D525 47 cm (18.5") 1366 x 768 pixels All-in-One PC 2 GB DDR2-SDRAM 320 GB HDD Windows 7 Home Premium Black
- Code
- 00A91212-SKU3P
- Display diagonal: 47 cm (18.5")
- Display resolution: 1366 x 768 pixels
- Processor manufacturer: Intel
- Processor family: Intel Atom®
- Internal memory: 2 GB
Pricing on request for federal, state, and local agencies.
Overview
The World's Slimmest All-in-One PC Design
Unparalleled Style
AP1920 is the world’s slimmest AIO PC design, and its finest with only 35mm in width. So, it can minimize space usage while broadening the visual capacity like other LCD monitors.
Flexible Display Angles and VESA Standard Wall Mount
AP1920 can be hung on a wall with a conventional wall-mounting device. With its 19-inch wide-screen display, it is ideal for hanging up in a bedroom, in the kitchen, or even in the bathroom.
The 18.5" 16:9 Wide Screen
The16:9 Golden Theater-Class ratios add 14% more viewing area compared to regular 16:10 screens. The Black Bars on the top and the bottom of the screen can also be avoided. It is perfect for displaying HD images from every angle possible, enjoying a high quality viewing session without restraint. In the other hand, AP1920 provides a 160 degrees wide visual experience.
High Performance, Energy-Saving and Low Noise
The Latest Intel® Pine Trail Processor
The Wind Top AP1920 uses the new Pine Trail platform from Intel®, with an AtomTM D510 dual-core processor. The combination of a core frequency of 1.66 GHz and the NM10 Express chipset used in the Pine Trail platform makes for significantly enhanced computing performance.
Low Power Consumption & Noise
AP1920 has been awarded U.S. Energy Star 5.0 certification, and conforms to the latest Energy-using Products (EuP) directive that will come into effect in the European Union in 2010. Despite providing dual-core computing performance, the Wind Top AP1920 also provides outstanding low-noise (26 dB) performance. Wind Top AP1920 can enjoy the peace of mind that comes from knowing that this is a genuinely low-energy-consumption, low-noise device.
The Most Complete Expanded Interface
The AP1920 also provides complete interfaces, including the all-in-one card reader function, able to read all of the general standards of memory cards, making it easy to save files into the notebook computer. Also adaptable to most 3C products in the market such as: PDA/digital camera/digital video camera/digital MP3 players, the USB 2.0 port is also part of the AP1920. A Multi-DVD burner is also ready to play and DVD discs or saving important document at your demand.
Display
- Display diagonal
- 47 cm (18.5")
- Display resolution
- 1366 x 768 pixels
- Touchscreen
- No
- Full HD
- No
- HD type
- Not supported
- LED backlight
- Yes
- Touch technology
- Single-touch
- Native aspect ratio
- 16:9
- Display brightness
- 250 cd/m²
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel Atom®
- Processor model
- D525
- Processor cores
- 2
- Processor threads
- 4
- Processor frequency
- 1.8 GHz
- Processor cache
- 1 MB
- Processor cache type
- L2
- Processor socket
- BGA 559
- Thermal Design Power (TDP)
- 13 W
- PCI Express slots version
- 2.0
- Processor lithography
- 45 nm
- Processor operating modes
- 64-bit
- Stepping
- B0
- Bus type
- DMI
- Processor codename
- Pineview
- Processor series
- Intel Atom D500 Series
- FSB Parity
- No
- Processor code
- SLBXC
- Tjunction
- 100 °C
- Number of Processing Die Transistors
- 176 M
- Processing Die size
- 87 mm²
- Maximum internal memory supported by processor
- 4 GB
- Conflict-Free processor
- No
- Memory types supported by processor
- DDR3 800 (SODIMM only); DDR2 667/800
- Memory bandwidth supported by processor (max)
- 6.4 GB/s
- Memory channels supported by processor
- Single
- ECC supported by processor
- No
Memory
- Internal memory
- 2 GB
- Internal memory type
- DDR2-SDRAM
- Maximum internal memory
- 2 GB
- Memory slots
- 2
- Memory slots type
- SO-DIMM
- Memory clock speed
- 800 MHz
- Memory layout (slots x size)
- 1 x 2 GB
Storage
- Total storage capacity
- 320 GB
- Storage media
- HDD
- Number of storage drives installed
- 1
- Number of HDDs installed
- 1
- HDD capacity
- 320 GB
- HDD speed
- 5400 RPM
- HDD size
- 2.5"
- HDD interface
- SATA II
- Optical drive type
- DVD Super Multi
- Card reader integrated
- Yes
- Compatible memory cards
- Memory Stick (MS), MicroSD (TransFlash), miniSD, MMC, SD, xD
Graphics
- Discrete graphics card model
- Not available
- On-board graphics card
- Yes
Audio
- Built-in speaker(s)
- Yes
- Number of speakers
- 2
- RMS rated power
- 6 W
- Built-in microphone
- Yes
- Audio system
- SRS Premium Sound
Camera
- Built-in camera
- Yes
- Total megapixels
- 1.3 MP
Network
- Wi-Fi
- Yes
- Wi-Fi standards
- 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Bluetooth
- No
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
- USB 2.0 ports quantity
- 4
- DVI port
- No
- Headphone outputs
- 1
- Microphone in
- Yes
- Combo headphone/mic port
- No
- DC-in jack
- Yes
- ExpressCard slot
- No
- Mini PCI Express slots
- 2
- PS/2 ports quantity
- 2
- S/PDIF out port
- No
Design
- Product colour
- Black
- Cable lock slot
- Yes
Performance
- Product type
- All-in-One PC
Software
- Operating system architecture
- 64-bit
- Operating system installed
- Windows 7 Home Premium
Processor special features
- Intel® Smart Response Technology
- No
- Intel® Turbo Boost Technology
- No
- Intel® Hyper Threading Technology (Intel® HT Technology)
- Yes
- Intel® My WiFi Technology (Intel® MWT)
- No
- Intel® Identity Protection Technology (Intel® IPT)
- No
- Intel® Anti-Theft Technology (Intel® AT)
- No
- Intel® Small Business Advantage (Intel® SBA)
- No
- Intel® Wireless Display (Intel® WiDi)
- No
- Enhanced Intel SpeedStep Technology
- No
- Intel® Quick Sync Video Technology
- No
- Intel® Clear Video HD Technology (Intel® CVT HD)
- No
- Intel Clear Video Technology
- No
- Intel® Insider™
- No
- Intel® InTru™ 3D Technology
- No
- Intel Flex Memory Access
- No
- Intel® AES New Instructions (Intel® AES-NI)
- No
- Intel Trusted Execution Technology
- No
- Intel Enhanced Halt State
- No
- Intel VT-x with Extended Page Tables (EPT)
- No
- Intel Demand Based Switching
- No
- Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
- No
- Intel 64
- Yes
- Execute Disable Bit
- Yes
- Idle States
- No
- Thermal Monitoring Technologies
- No
- Processor package size
- 22 x 22 mm
- Supported instruction sets
- SSE2, SSE3, SSSE3
- Physical Address Extension (PAE)
- 32 bit
- Embedded options available
- Yes
- Intel Virtualization Technology for Directed I/O (VT-d)
- No
- Intel Virtualization Technology (VT-x)
- No
- Intel Dual Display Capable Technology
- No
- Intel FDI Technology
- No
- Intel Rapid Storage Technology
- No
- Intel Fast Memory Access
- No
- Processor ARK ID
- 49490
Power
- AC adapter power
- 65 W
- AC adapter input voltage
- 100 - 240 V
Weight & dimensions
- Width (with stand)
- 450 mm
- Depth (with stand)
- 420 mm
- Height (with stand)
- 35 mm
- Weight (with stand)
- 7.1 kg
- Package weight
- 8.2 kg
Operational conditions
- Operating temperature (T-T)
- 10 - 35 °C
- Storage temperature (T-T)
- -20 - 60 °C
Certificates
- Certification
- UL/CB EMC: CE/FCC/CCC/BSMI/GOST/TUV/KCC
Packaging content
- Mouse included
- Yes
- Keyboard included
- Yes
- AC adapter included
- Yes
- Cables included
- AC
- Drivers included
- Yes
Other features
- 3D
- No
- Graphics card family
- Intel
- Storage drive interface
- Serial ATA II
- Cabling technology
- 10/100/1000Base-T(X)
- Chassis type
- All-in-One
- Display included
- Yes
- Ethernet interface type
- Gigabit Ethernet
- Line-in
- Yes
- Line-out
- Yes
- Networking features
- Gigabit Ethernet, WLAN
- Number of processors installed
- 1
- Power supply
- 65 W
- Power supply type
- AC
- Speakers
- 2
