MSI · All-in-One PCs/Workstations

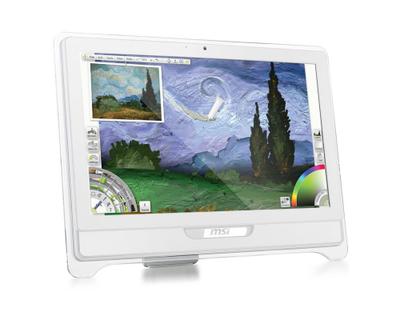

MSI Wind Top AE2240-002NL Intel® Core™ i3 i3-370M 54.6 cm (21.5") 1920 x 1080 pixels Touchscreen 4 GB DDR3-SDRAM 1 TB Intel® GMA HD Windows 7 Home Premium White
- Code
- AE2240-002NL
- Display diagonal: 54.6 cm (21.5")
- Display resolution: 1920 x 1080 pixels
- Processor manufacturer: Intel
- Processor family: Intel® Core™ i3
- Internal memory: 4 GB
Pricing on request for federal, state, and local agencies.
The Wind Top AE2240, which delivers high performance at a great value, combines a large 21.5” Full HD display and Intel’s dual core processor to make daily tasks easier than ever. Differentiating from other competitor’s models, the AE2240 has built-in stereo speakers which feature Hollywood-grade THX TruStudio Pro sound technology. This allows users to enjoy a surround sound effect along with the high-quality videos. Even better, the user experience is also enhanced with MSI’s proprietary multi-touch technology.
Exceptional Video and Audio
The Wind Top AE2240 is equipped with a 16:9 aspect ratio high-definition screen which supports 1080p Full HD. This advanced display technology allows you to see every little detail and enjoy high-definition video in all its glory. To provide users with an audio experience that matches the videos on their All-in-One PC, The Wind Top AE2240 features Hollywood-grade THX TruStudio Pro™ sound technology. THX Studio Pro™ can be turned on or off as needed thereby giving the user more control over their sound quality in different usage scenarios.
Convenient and Intuitive Touch Interface
The Wind Top AE2240 comes preinstalled with the Windows® 7 operating system and supports multi-touch control. The all-new user interface delivers a smoother and more responsive experience than ever. A variety of exclusive multi-touch software that is suitable for the whole family is installed, including Wind Touch Version 3. Thanks to a user-friendly interface, it is now possible with just a quick touch to check the weather across the world, time and date, browse photos, record a video message, or even make free phone calls over the Internet using Skype Phone.
Extensive I/O Interface for All Multimedia Needs
The Wind Top AE2240 is equipped with a 640GB hard drive, 2GB of DDR3 memory including 2 SO-DIMM slots which can be upgraded to 8GB of memory, and supports 802.11 b/g/n wireless networking. Also built-in is the 1.3 Megapixel webcam, microphone, and two 3W stereo speakers. Everything is perfectly integrated into the PC itself so that there is no need for any other peripherals. The AE2240 comes with six USB 2.0 ports and a 6-in-1 card reader that is compatible with all mainstream memory card specifications. There is also a high-speed 3Gb/s external eSATA port for transferring and accessing data so that you can backup all of your important photos, videos, and other data more easily and quickly.
Display
- Display diagonal
- 54.6 cm (21.5")
- Display resolution
- 1920 x 1080 pixels
- Touchscreen
- Yes
- HD type
- Full HD
- Touch technology
- Multi-touch
- Native aspect ratio
- 16:9
- Display brightness
- 300 cd/m²
- Contrast ratio (typical)
- 1000:1
- Viewing angle, horizontal
- 160°
- Viewing angle, vertical
- 150°
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel® Core™ i3
- Processor generation
- Intel® Core™ i3
- Processor model
- i3-370M
- Processor cores
- 2
- Processor threads
- 4
- Processor frequency
- 2.4 GHz
- Processor cache
- 3 MB
- Processor cache type
- Smart Cache
- System bus rate
- 2.5 GT/s
- Processor socket
- Socket 988
- Thermal Design Power (TDP)
- 35 W
- PCI Express slots version
- 2.0
- Processor lithography
- 32 nm
- Processor operating modes
- 64-bit
- Stepping
- K0
- Bus type
- DMI
- Processor codename
- Arrandale
- Processor series
- Intel Core i3-300 Mobile Series
- FSB Parity
- No
- Maximum number of PCI Express lanes
- 16
- PCI Express configurations
- 1x16
- Processor code
- SLBUK
- Tjunction
- 90 °C
- Number of Processing Die Transistors
- 382 M
- CPU multiplier (bus/core ratio)
- 18
- Processing Die size
- 81 mm²
- Maximum internal memory supported by processor
- 8 GB
- Conflict-Free processor
- No
- Memory types supported by processor
- DDR3-SDRAM
- Memory clock speeds supported by processor
- 800,1066 MHz
- Memory bandwidth supported by processor (max)
- 17.1 GB/s
- Memory channels supported by processor
- Dual
- ECC supported by processor
- No
Memory
- Internal memory
- 4 GB
- Internal memory type
- DDR3-SDRAM
- Maximum internal memory
- 8 GB
- Memory clock speed
- 1066 MHz
- Memory layout (slots x size)
- 2 x 2 GB
Storage
- Total storage capacity
- 1 TB
- HDD speed
- 7200 RPM
- HDD interface
- SATA II
- Optical drive type
- DVD Super Multi
- Card reader integrated
- Yes
- Compatible memory cards
- Memory Stick (MS), miniSD, MMC, SD, xD
Graphics
- Discrete graphics card model
- Intel® GMA HD
- On-board graphics card
- Yes
- On-board graphics card family
- Intel® HD Graphics
- On-board graphics card model
- Intel® HD Graphics
- On-board graphics card base frequency
- 500 MHz
- On-board graphics card dynamic frequency (max)
- 667 MHz
- Number of displays supported (on-board graphics)
- 2
Audio
- Built-in microphone
- Yes
Camera
- Built-in camera
- Yes
Network
- Wi-Fi
- Yes
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
- USB 2.0 ports quantity
- 6
- HDMI ports quantity
- 1
- VGA (D-Sub) ports quantity
- 1
- DVI port
- No
- Headphone outputs
- 1
- Microphone in
- Yes
- DC-in jack
- Yes
- eSATA ports quantity
- 1
- S/PDIF out port
- Yes
Design
- Product colour
- White
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
Performance
- Motherboard chipset
- Intel® HM55 Express
Software
- Operating system architecture
- 64-bit
- Operating system installed
- Windows 7 Home Premium
Processor special features
- Intel® Turbo Boost Technology
- No
- Intel® Hyper Threading Technology (Intel® HT Technology)
- Yes
- Intel® My WiFi Technology (Intel® MWT)
- No
- Intel® Anti-Theft Technology (Intel® AT)
- No
- Intel® Wireless Display (Intel® WiDi)
- No
- Enhanced Intel SpeedStep Technology
- Yes
- Intel® Quick Sync Video Technology
- No
- Intel® Clear Video HD Technology (Intel® CVT HD)
- Yes
- Intel Clear Video Technology
- Yes
- Intel® Insider™
- No
- Intel® InTru™ 3D Technology
- No
- Intel Flex Memory Access
- Yes
- Intel® Smart Cache
- Yes
- Intel® AES New Instructions (Intel® AES-NI)
- No
- Intel Trusted Execution Technology
- No
- Intel Enhanced Halt State
- Yes
- Intel VT-x with Extended Page Tables (EPT)
- Yes
- Intel Demand Based Switching
- No
- Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
- Yes
- Intel 64
- Yes
- Execute Disable Bit
- Yes
- Idle States
- Yes
- Thermal Monitoring Technologies
- Yes
- Processor package size
- rPGA 37.5x 37.5, BGA 34x28
- Supported instruction sets
- SSE4.1, SSE4.2
- Physical Address Extension (PAE)
- Yes
- Physical Address Extension (PAE)
- 36 bit
- CPU configuration (max)
- 1
- Embedded options available
- No
- Graphics & IMC lithography
- 45 nm
- Intel Virtualization Technology for Directed I/O (VT-d)
- No
- Intel Virtualization Technology (VT-x)
- Yes
- Intel Dual Display Capable Technology
- Yes
- Intel FDI Technology
- Yes
- Intel Rapid Storage Technology
- No
- Intel Fast Memory Access
- Yes
- Processor ARK ID
- 49020
Weight & dimensions
- Width (with stand)
- 554.1 mm
- Depth (with stand)
- 62.5 mm
- Height (with stand)
- 403.5 mm
- Weight (with stand)
- 8.4 kg
Operational conditions
- Operating temperature (T-T)
- 10 - 35 °C
- Storage temperature (T-T)
- -20 - 60 °C
Certificates
- Acoustic pressure emissions
- 20.9 dB
Other features
- Graphics card family
- Intel
- Audio output channels
- 5.1 channels
- Cabling technology
- 10/100/1000Base-T(X)
- Chassis type
- All-in-One
- Display
- Full HD
- Display included
- Yes
- Expansion slots
- 2 x mini PCI-E
- Networking features
- Gigabit Ethernet, WLAN
- Number of processors installed
- 1
- Power supply
- 90 W
- Speakers
- 2 x 3W
