MSI · All-in-One PCs/Workstations

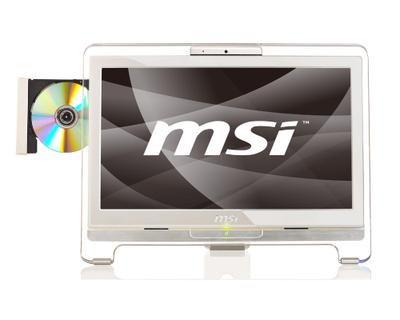

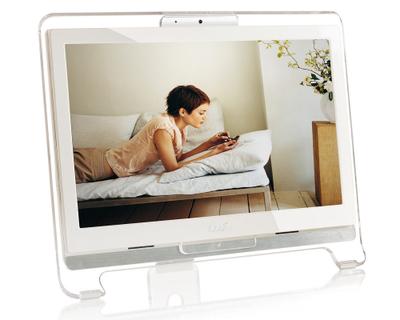

MSI Wind Top AE1920-D5223W7H Intel Atom® D525 47 cm (18.5") 1366 x 768 pixels Touchscreen 2 GB DDR3-SDRAM 320 GB HDD Windows 7 Home Premium White
- Code
- 00A923-SKU1
- Display diagonal: 47 cm (18.5")
- Display resolution: 1366 x 768 pixels
- Processor manufacturer: Intel
- Processor family: Intel Atom®
- Internal memory: 2 GB
Pricing on request for federal, state, and local agencies.
Stylish & Trendy—Elegant White
The Wind Top AE1920 incorporates all of the computer's functions into an elegant white casing that features streamlined molding and transparent frame design that sheds the traditional cold feel of computers. In addition to being slimline and not taking up much space, it’s like a refined home accessory that adds to the style and atmosphere of your house.
Ultra-Convenient Touch Display
The touch screen makes operating the computer simple and convenient. The friendly Wind Touch 3D interface, along with the highly responsive touch display, let you forget about the keyboard and mouse while providing the same functionality of a standard desktop PC.
Fun Software
The Wind Top AE1920 comes pre-loaded with all-new touch software and games, including: MSI YouCam, MSI YouPaint, MSI YouMemo, Kidoz, and MSI Game Corner.
All-New Intel® Atom™ Processor
The latest Intel® Atom™ microprocessor uses all-new micro architecture with a special small-scale configuration and low power consumption design—the most important hub of an ultra-thin computer.
Ultra-Low Power Consumption
In one year, using the AE1920 can save over 400 kilograms of carbon dioxide emissions and 200 trees*, so you can actually be green while enjoying yourself.
Display
- Display diagonal
- 47 cm (18.5")
- Display resolution
- 1366 x 768 pixels
- Touchscreen
- Yes
- Full HD
- No
- HD type
- Not supported
- Touch technology
- Single-touch
- Native aspect ratio
- 16:9
- Display brightness
- 250 cd/m²
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel Atom®
- Processor model
- D525
- Processor cores
- 2
- Processor threads
- 4
- Processor frequency
- 1.8 GHz
- Processor cache
- 1 MB
- Processor cache type
- L2
- Processor socket
- BGA 559
- 64-bit computing
- Yes
- Thermal Design Power (TDP)
- 13 W
- Processor lithography
- 45 nm
- Processor operating modes
- 64-bit
- Stepping
- B0
- Bus type
- DMI
- Processor codename
- Pineview
- Processor series
- Intel Atom D500 Series
- FSB Parity
- No
- Processor code
- SLBXC
- Tjunction
- 100 °C
- Number of Processing Die Transistors
- 176 M
- Processing Die size
- 87 mm²
- Maximum internal memory supported by processor
- 4 GB
- Conflict-Free processor
- No
- Memory types supported by processor
- DDR3 800 (SODIMM only); DDR2 667/800
- Memory bandwidth supported by processor (max)
- 6.4 GB/s
- Memory channels supported by processor
- Single
- ECC supported by processor
- No
Memory
- Internal memory
- 2 GB
- Internal memory type
- DDR3-SDRAM
- Maximum internal memory
- 4 GB
- Memory slots
- 2
- Memory slots type
- SO-DIMM
- Memory clock speed
- 800 MHz
- Memory layout (slots x size)
- 1 x 2 GB
Storage
- Total storage capacity
- 320 GB
- Storage media
- HDD
- Number of HDDs installed
- 1
- HDD speed
- 5400 RPM
- HDD size
- 2.5"
- HDD interface
- SATA II
- Optical drive type
- DVD Super Multi
- Card reader integrated
- Yes
- Compatible memory cards
- Memory Stick (MS), MicroSD (TransFlash), miniSD, MMC, SD, xD
Graphics
- On-board graphics card
- Yes
Audio
- Built-in speaker(s)
- Yes
- Number of speakers
- 2
- RMS rated power
- 6 W
- Built-in microphone
- Yes
- Audio system
- SRS Premium Sound
Camera
- Built-in camera
- Yes
- Total megapixels
- 1.3 MP
Network
- Wi-Fi
- Yes
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Bluetooth
- No
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
- USB 2.0 ports quantity
- 4
- HDMI ports quantity
- 1
- DVI port
- No
- Headphone outputs
- 1
- Microphone in
- Yes
- DC-in jack
- Yes
- Mini PCI Express slots
- 2
Design
- Product colour
- White
- Cable lock slot
- Yes
- Wall mountable
- Yes
Performance
- Motherboard chipset
- Intel® NM10 Express
Software
- Operating system architecture
- 64-bit
- Operating system installed
- Windows 7 Home Premium
Processor special features
- Intel® Turbo Boost Technology
- No
- Intel® Hyper Threading Technology (Intel® HT Technology)
- Yes
- Intel® My WiFi Technology (Intel® MWT)
- No
- Intel® Anti-Theft Technology (Intel® AT)
- No
- Intel® Wireless Display (Intel® WiDi)
- No
- Enhanced Intel SpeedStep Technology
- No
- Intel® Quick Sync Video Technology
- No
- Intel® Clear Video HD Technology (Intel® CVT HD)
- No
- Intel Clear Video Technology
- No
- Intel® Insider™
- No
- Intel® InTru™ 3D Technology
- No
- Intel Flex Memory Access
- No
- Intel® AES New Instructions (Intel® AES-NI)
- No
- Intel Trusted Execution Technology
- No
- Intel Enhanced Halt State
- No
- Intel VT-x with Extended Page Tables (EPT)
- No
- Intel Demand Based Switching
- No
- Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
- No
- Intel 64
- Yes
- Execute Disable Bit
- Yes
- Idle States
- No
- Thermal Monitoring Technologies
- No
- Processor package size
- 22 x 22 mm
- Supported instruction sets
- SSE2, SSE3, SSSE3
- Physical Address Extension (PAE)
- 32 bit
- Embedded options available
- Yes
- Intel Virtualization Technology for Directed I/O (VT-d)
- No
- Intel Virtualization Technology (VT-x)
- No
- Intel Dual Display Capable Technology
- No
- Intel FDI Technology
- No
- Intel Rapid Storage Technology
- No
- Intel Fast Memory Access
- No
- Processor ARK ID
- 49490
Power
- AC adapter power
- 65 W
- AC adapter input voltage
- 100 - 240 V
Weight & dimensions
- Width (with stand)
- 476 mm
- Depth (with stand)
- 49 mm
- Height (with stand)
- 365 mm
- Weight (with stand)
- 7.1 kg
- Package weight
- 8.2 kg
Operational conditions
- Operating temperature (T-T)
- 10 - 35 °C
- Storage temperature (T-T)
- -20 - 60 °C
Certificates
- Certification
- UL/CB EMC:CE/FCC/C-TICK/VCCI/BSMI
Packaging content
- Mouse included
- Yes
- Keyboard included
- Yes
- Remote control included
- No
Other features
- Graphics card family
- Intel
- Storage drive interface
- Serial ATA II
- TV tuner integrated
- No
- Cabling technology
- 10/100/1000Base-T(X)
- Chassis type
- All-in-One
- Compliance industry standards
- IEEE 802.3, 802.3u, 802.3ab
- Display
- LCD
- Display included
- Yes
- Ethernet interface type
- Gigabit Ethernet
- Floppy drive installed
- No
- Line-in
- Yes
- Line-out
- Yes
- Networking features
- Gigabit Ethernet, WLAN
- Number of processors installed
- 1
- Power requirements
- 100-240V
- Power supply type
- AC
- Speakers
- 2
- Wireless technology
- Wi-Fi
