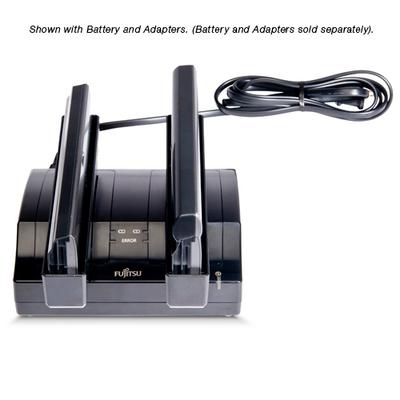

Fujitsu FPCBC27AP battery charger

The Battery Charging Station, FPCBC27AP together with Battery Adapter kits listed below are used to charge the modular bay or the main battery. Please order the correct adapter kit below.

1. Main Battery Adapter Kit FPCAD09AP is required for T730, T731, TH700, T900, T901, T1010, T4310, T4410, T5010.
2. Main Battery Adapter Kit FPCAD10AP is required for T2020.
3. Main Battery Adapter Kit FPCAD11AP is required for P1630.
4. Modular Bay Battery Adapter Kit FPCAD12AP is required for E751, E780, S710, S751, P771, T730, T731, TH700, T900, T901, T4310, T4410, T5010 Modular Bay Battery.
5. Main Battery Adapter Kit FPCAD13AP is required for T580, P701.
6. Main Battery Adapter Kit FPCAD26AP is required for S761.
7. Main Battery Adapter Kit FPCAD19AP is required for Q550.

Note: Battery is NOT included with Adapter Kit item, and must be purchased separately.
There are two adapters included in each adapter kit.Dimensions: 6.7" x 5.9" x 2.2" Weight 1.5 lbs. Input: 100-240V AC 50/60Hz

AC Cord Included

Multiple Battery Charging Stations can be neatly connected by using the rotating hook on the bottom of the unit. The hook is designed to simply align the chargers. (Note: The hook underneath is not designed for hanging and it will not support the weight of the charger). To use the hook to align battery chargers, rotate it so that it hooks to the post adjacent to it. Hook the protruding end to the small post on the other charging station bottom.
